Ubiquiti Networks

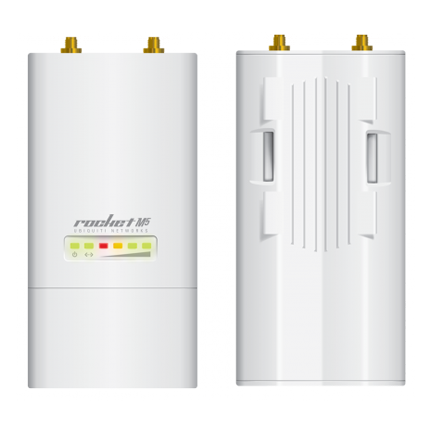

The Ubiquiti Rocket M5 is a rugged, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCP/IP). The device was specifically designed for outdoor PtP bridging and PTMP Airmax base-station applications.
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
Compatible Antennas:
- AirMax Sector 5G-17-90
- AirMax Sector 5G-16-120
- AirMax Sector 5G-20-90
- AirMax Sector 5G-19-120
- Rocket Dish 5G-30
Delivery contents: Ubiquiti Rocket M5 (device), 24 Volt Power Supply (EU) with integrated PoE-Injector
| Product Name: | Ubiquiti Rocket M5 MIMO TDMA, RM5 |
| Processor Specs: | Atheros MIPS 24KC, 400MHz |
| Memory Information: | 64MB SDRAM, 8MB Flash |
| Networking Interface: | 1 * 10/100 BASE-TX |
| Compliance: | FCC Part 15.247, CE, IC RS210, RoHS |
| TX Power: | max. 27dBm, +/-2dB at 11a/11n |
| RX Sensitivity: | min. -83dBm +/-2dB at 11a, min. -96dBm +/-2dB at 11n |
| Antenna: | 2x RP-SMA for external AirMax MiMo-Antenna |
| TCP/IP Throughput: |
up to 150MBit/Sec. |
| Max Power Consumption: | Max. 8 Watts |
| Power Supply: | 24V, 1A (24 Watts) |
| Power Method: | Passive Power over Ethernet (pairs 4,5+; 7,8 return) |
| Operating Temperature: | -30°C to +75°C |
| Operating System: | AirOS V |
